Our Machines

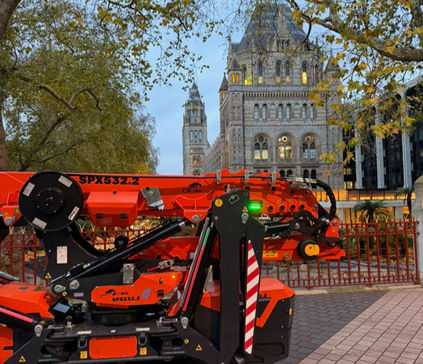

Jekko SPX 532.2

The Jekko SPX 532.2 is a refined evolution of the popular 3.2-tonne spider crane.



Key Technical Specifications

  • Lifting Capacity: Maximum capacity of 3.2 tonnes.

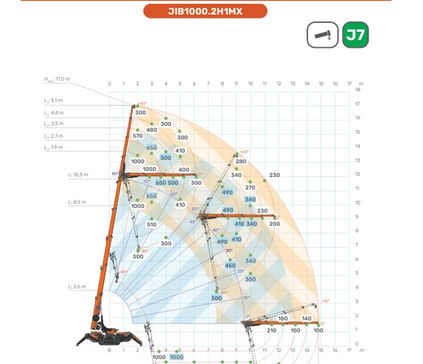

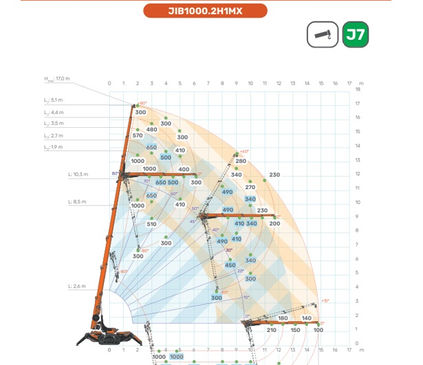

  • Reach & Height: Features a 10.3m main boom and a 5.1m telescopic jib, offering a maximum tip height of 17.3 metres.

  • Pick & Carry: Capable of moving loads up to 400 kg while travelling.

  • Compact Dimensions: At only 770 mm wide, it can navigate through standard single doors.

  • Enhanced Stability: A new outrigger system provides nine fixed positioning options, allowing for more flexible setup on restricted or uneven ground.

  • Power: full-electric model with a long-lasting lithium-ion battery pack for emission-free indoor work. Charging using 110V power to ensure its compatible on UK construction sites.

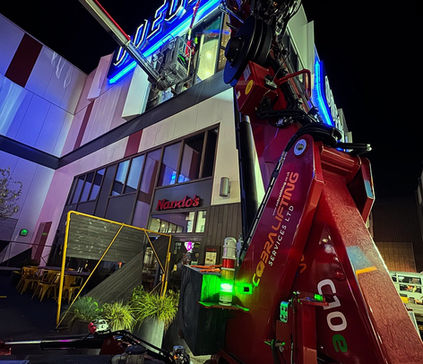

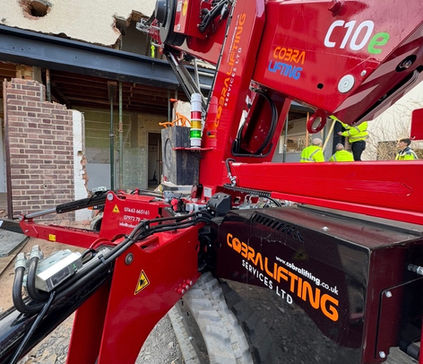

​​​​​Hoeflon C10e



The Hoeflon C10e is a powerful, fully electric compact mini crane known for its high lifting capacity of up to 4 tonnes despite a narrow design that allows it to fit through standard doorways. It is a versatile machine, popular for both indoor and outdoor heavy lifting applications.

Key Features and Specifications

  • Lifting Capacity: Maximum of 4,000 kg.

  • Maximum Hoisting Height: Up to 22 meters with the optional fly jib.

  • Maximum Outreach: Up to 19.8 meters with the optional fly jib.

  • Compact Dimensions: Only 80 cm wide, allowing access through narrow passages and standard doorways.

  • Power: Fully electric, powered by safe and durable LiFePO4 lithium batteries, enabling emission-free operation.

  • Weight: Total weight of approximately 4,700 kg, which can be reduced to 3,260 kg by removing the counterweight and jib for transport.

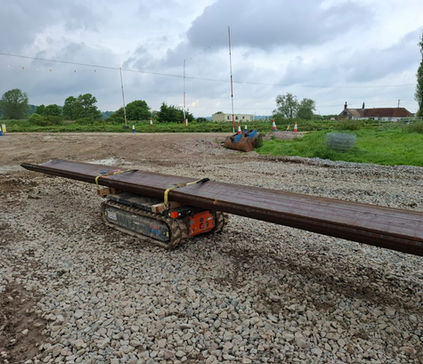

4000 PRO Tracked Carrier

​

The 4000 PRO is a heavy-duty, all-electric crawler carrier designed for transporting massive loads through exceptionally tight or difficult terrain.

Core Performance Specifications

  • Max Capacity: 4,000 kg on level ground; 1,000 kg at its maximum gradient.

  • Dimensions: Extremely compact at only 1,000 mm wide and 500 mm high, allowing it to navigate through narrow industrial doorways.

  • Weight: An unladen weight of 970 kg.

  • Mobility: Capable of climbing 45° gradients (100% slope) and handling 30° side slopes.

  • Power: Fully battery-electric. Operates with zero emissions and minimal noise for indoor or night-time use.

Key Technical Features

  • Powered Rotating Deck: Includes a remote-controlled platform that can rotate and extend from a standard size to 2m x 3m to accommodate oversized loads.

  • Precision Control: Operated via a fully proportional wireless remote control that provides real-time information feedback and gradient monitoring to the operator.

2500 PRO Tracked carrier

​

 is a compact, all-electric tracked carrier (formerly known as the TC-2500 PRO) designed for transporting heavy loads of up to 2,500 kg through narrow and confined spaces. Offering higher capacity within the same compact footprint, and operates with zero emissions for indoor and outdoor use.

Specifications

  • Max Capacity: 2,500 kg on level ground; 550 kg at maximum gradient.

  • Dimensions: Only 950 mm wide, with a height of 365 mm, allowing it to fit through most standard industrial doorways and narrow passages.

  • Mobility: Capable of climbing 45° gradients and handling 30° side slopes.

  • Power: Fully battery-electric

  • Speed: Maximum travel speed of 3 km/h.

Key Features

  • Remote Control: Operated via a fully proportional wireless remote control that provides gradient monitoring and real-time information feedback to the operator.

  • Adaptable Bed: The carrier bed is extendable and adaptable, suitable for various loads.

  • Smart Auxiliary Output: Includes a smart auxiliary output that allows for the control of powered accessories and attachments, such as winches or A-frames, enhancing versatility and safety.

  • Low Maintenance: The machine is designed to be hydraulic-free, which translates to minimal maintenance requirements.

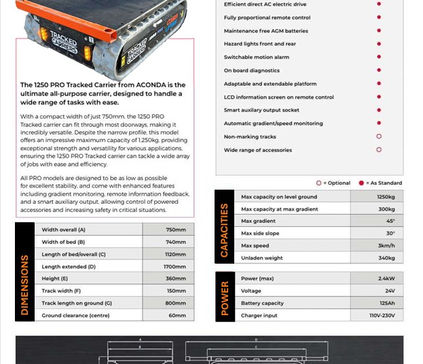

​1250 Pro Tracked carrier

​

The 1250 pro is a compact, all-purpose electric tracked carrier designed to transport loads up to 1,250 kg through very narrow and confined spaces. It can fit through most standard doorways.

Specifications

  • Max Capacity: 1,250 kg on level ground; 300 kg at max gradient.

  • Dimensions: At only 750 mm wide, it fits through most doorways. 360 mm high.

  • Weight: An unladen weight of approximately 340 kg

  • Mobility: Capable of climbing 45° gradients (100% slope) and handling 30° side slopes.

  • Power: Fully battery-electric, providing zero-emission operation.

  • Speed: Maximum travel speed of 3 km/h.

Key Features

  • Remote Control: Features a fully proportional wireless remote control for precise operation from a safe distance.

  • Safety Features: New controller features include gradient monitoring, information feedback, hazard LEDs, and an illuminated display for low-light situations, all increasing safety in critical scenarios.

  • Adaptable & Extendable: The carrier bed can be extended and is adaptable for various types of loads. The overall length can be extended from 1120mm to 1700mm.

Attachments and Accessories

 Fifth wheel & Dolly accessory, which allows the transport of long, heavy loads and adds an extra 1,000 kg capacity with manual steering for better control.

Rotating bed to allow for precise manoeuvrability with what is being transported.

A-Frame attachment suitable for transporting glass, sheet metal, sheets of plywood/plasterboard etc.



​​​VIAVAC GBX Vacuum Lifter

Vacuum glass lifter designed for the safe installation of glass panels weighing up to 800 kg. Its modular design makes it an "all-rounder" capable of handling small, large, and long narrow panels with ease.

Key Technical Specifications

  • Lifting Capacity: Maximum of 800 kg.

  • Configuration Options: Modular frame that can be assembled in 6 different ways to suit various glass shapes and sizes.

  • Movement:

    • 360° Rotation: Lockable in 8 to 12 positions.

    • 90° Tilting: Lockable in 5 to 6 positions (every 18°).

  • Safety System: Features a dual-circuit vacuum system for redundant security, alongside audible and visual alarms for low vacuum or low battery.

  • Unit Weight: Approximately 85 kg.

  • Remote Operation: An optional radio remote control is available for easier uncoupling and handling in tight spaces.

  • Power: Battery-powered for a full day's work, with overnight charging.
